How to setup any gateway with the smshare module for Opencart


Posted on June 16, 2015

Update on December 25, 2016

Tags: Opencart

Introduction

In this quick post we will see how to setup any gateway with the smshare module for Opencart. Smshare modules for Opencart are available on the smshare official store for both Opencart 1 and Opencart 2 .

Theoretical case

Every SMS gateway out there will provide you with an API to send SMS programmatically. They often provide you with a GET URL or in some case with a POST endpoint.

The GET URL provided looks like the following:

http://www.sms-gateway.com/send-sms?num=12345679&msg=hello&param1=xyz&param2=abc&...

URL part Name Description Optional?
http://www.sms-gateway.com/send-sms The API Gateway URL Enter the gateway URL in the API URL field in smshare module configuration. Required
num The destination field This is the name of the variable that represents the destination numbers. Required
msg The message field This is the name of the variable that reprensents the message. Required
param1, param2, etc Additional fields These are additional parameters that may be required by your gateway. Optional

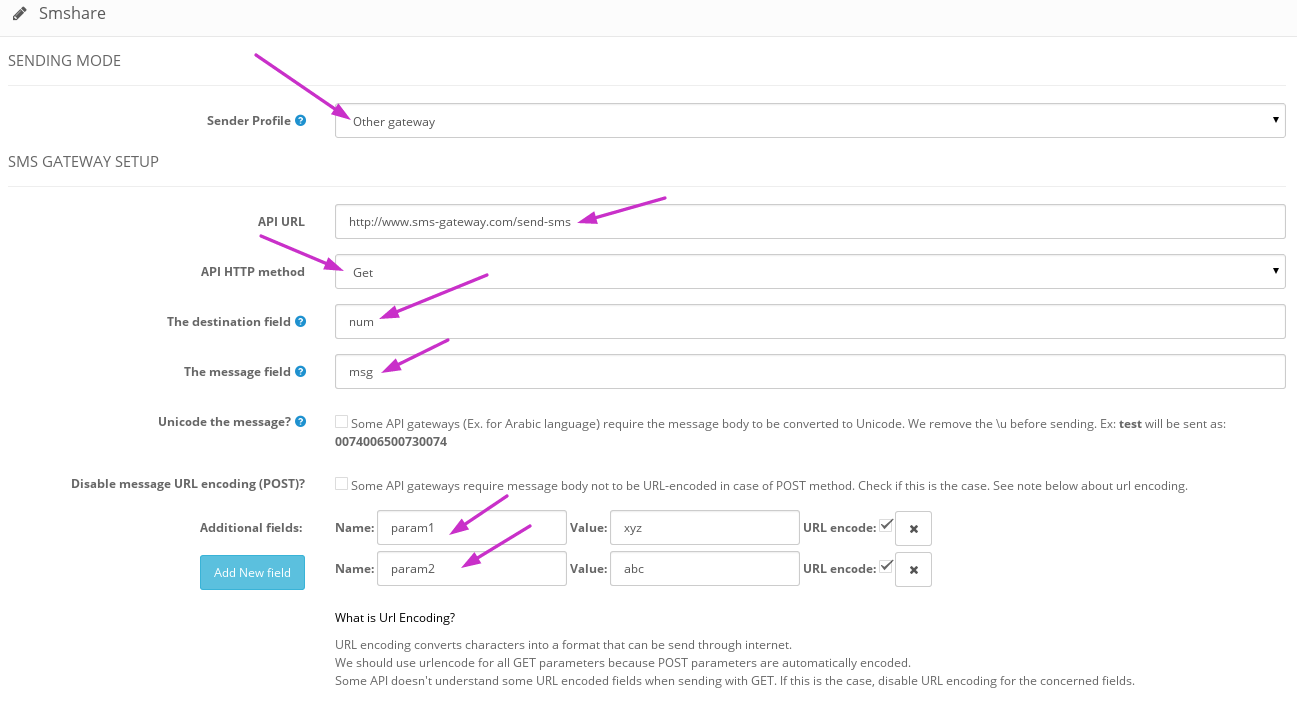

Here is a screenshot of how you enter these values in smshare module configuration.

Gateway configuration example

Some example

Here below screenshots of some working gateways configurations.

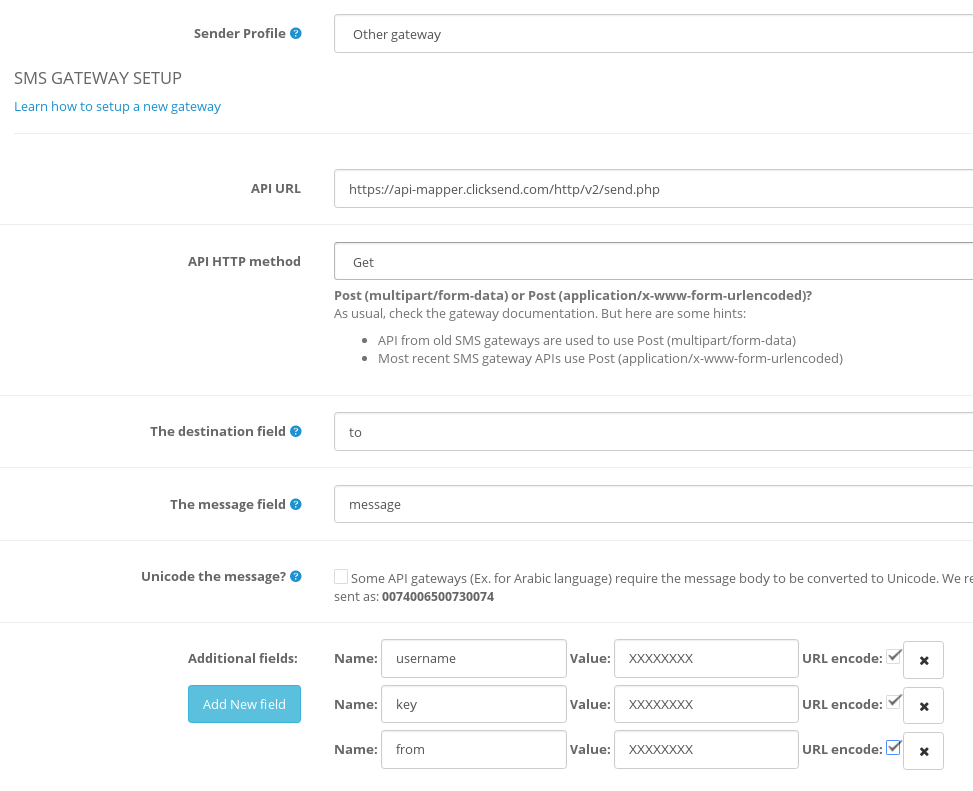

ClickSend.com

Register for a ClickSend account here: ClickSend.com Gateway configuration example

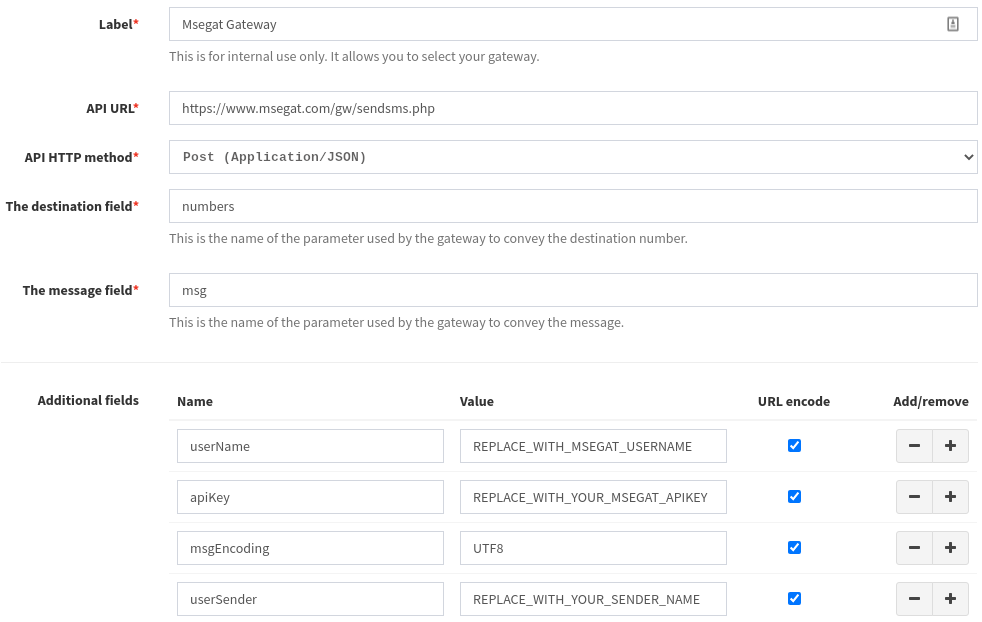

Msegat

MSEGAT SMS gateway setup with smsharem - Gateway configuration example Gateway configuration example

Here are the configuration values shown in the screenshot above, for Msegat for easy copy/paste

Name Value Note
The API URL http://msegat.com/gw/
The destination field numbers
The message field msg
userName Your msegat username Additional field
userPassword Your msegat password Additional field
userSender Your senderID Additional field
msgEncoding UTF8 Additional field
By Link You can put something else here.

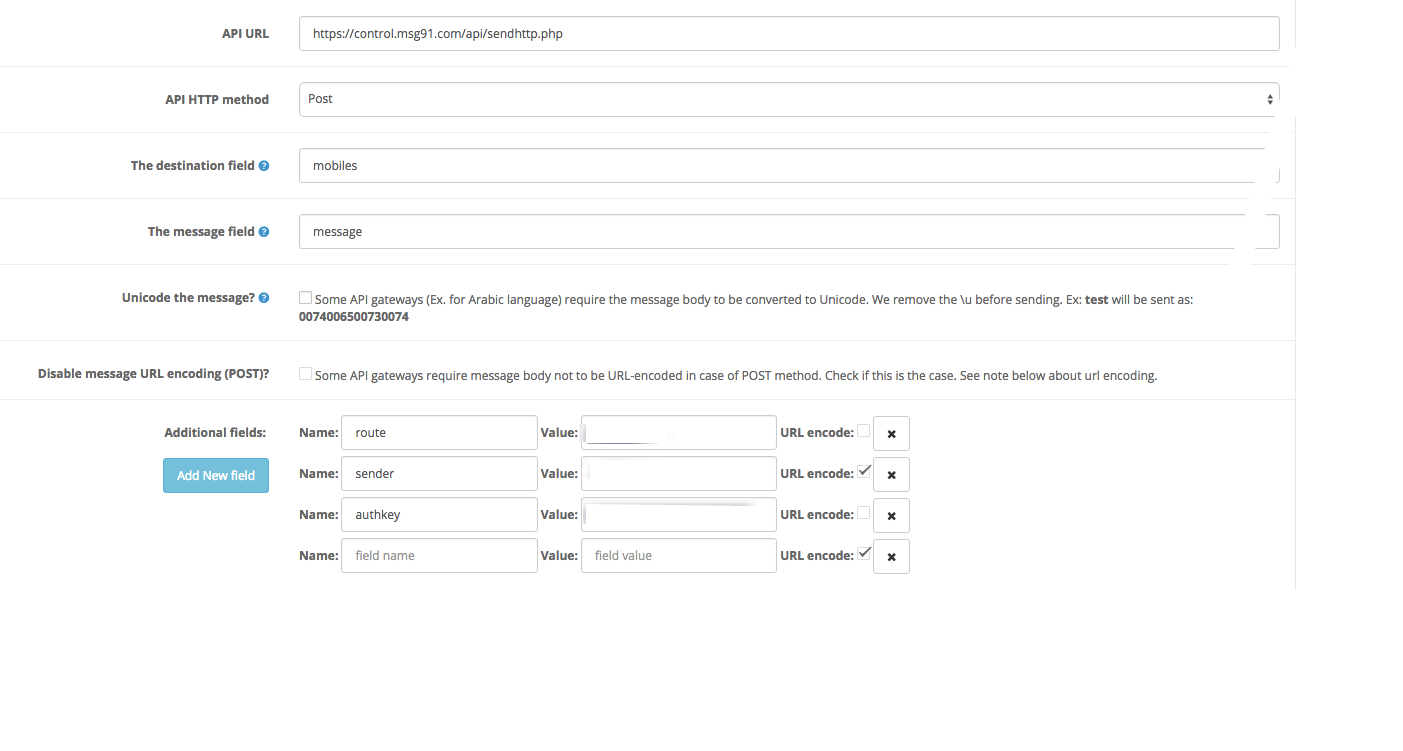

MSG91

Gateway configuration example

Here are the configuration values shown in the screenshot above, for MSG91 for easy copy/paste

Name Value Note
The API URL https://control.msg91.com/api/sendhttp.php
The destination field mobiles
The message field message
route 4 Additional field
authkey Your API authkey Additional field
sender Your senderID Additional field

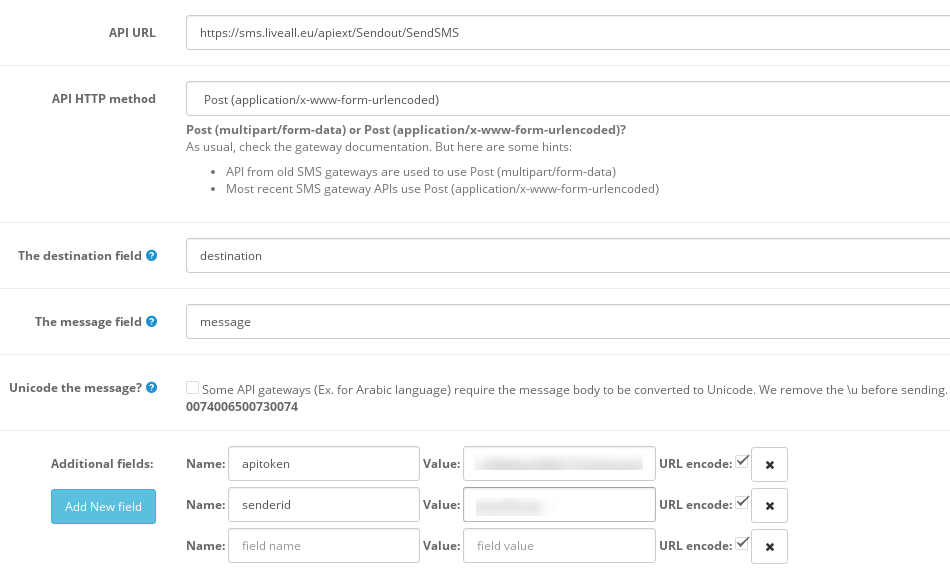

Liveall

liveall.eu is a Greek SMS gateway.

Gateway configuration example

Here are the configuration values shown in the screenshot above, for liveall for easy copy/paste

Name Value Note
The API URL https://sms.liveall.eu/apiext/Sendout/SendSMS
The destination field destination
The message field message
apitoken Your liveall API token Additional field
senderid Your senderID Additional field

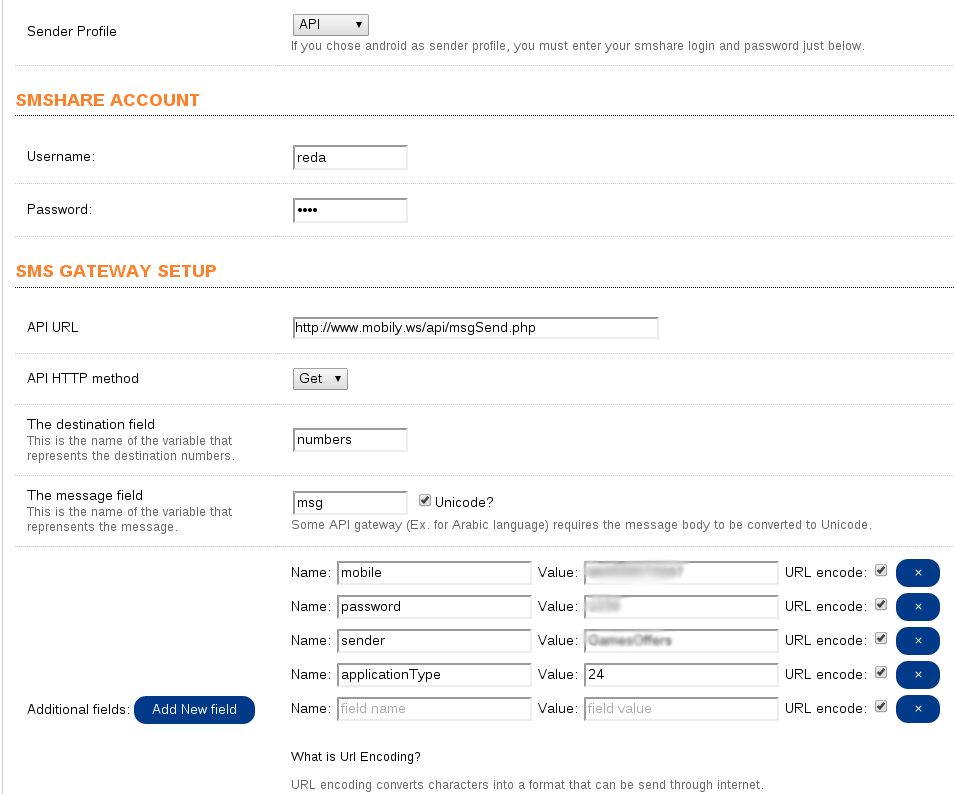

Mobily.ws

Gateway configuration example

Here are the configuration values shown in the screenshot above, for mobily.ws for easy copy/paste

Name Value Note
The API URL http://www.mobily.ws/api/msgSend.php
The destination field numbers
The message field msg Check the "unicode the message" setting. This gateway requires the message body to be converted to Unicode
mobile Your mobile number used when you registered with mobily.ws Additional field
password Your password used when you registered with mobily.ws Additional field
sender Your senderID you registered with mobily.ws Additional field
applicationType 24 Additional field

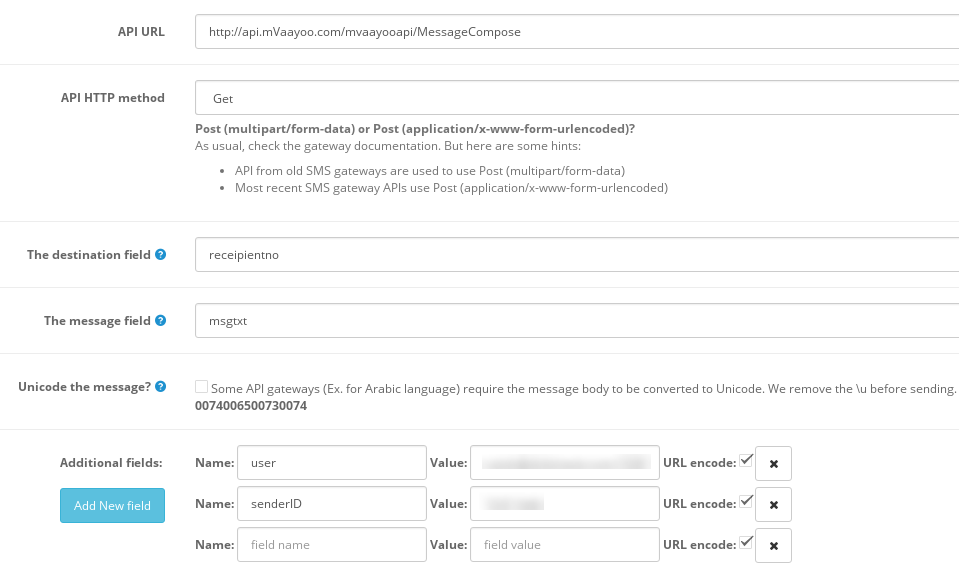

mvaayoo

Gateway configuration example

Here are the configuration values shown in the screenshot above, for mVaayoo for easy copy/paste

Name Value Note
The API URL http://api.mVaayoo.com/mvaayooapi/MessageCompose
The destination field receipientno Note that they made a spelling mistake (recipient is correct) but you must stick with receipientno
The message field msgtxt
user the value looks like: username@example.com:123456 Additional field
senderID Your mvaayoo sender id Additional field

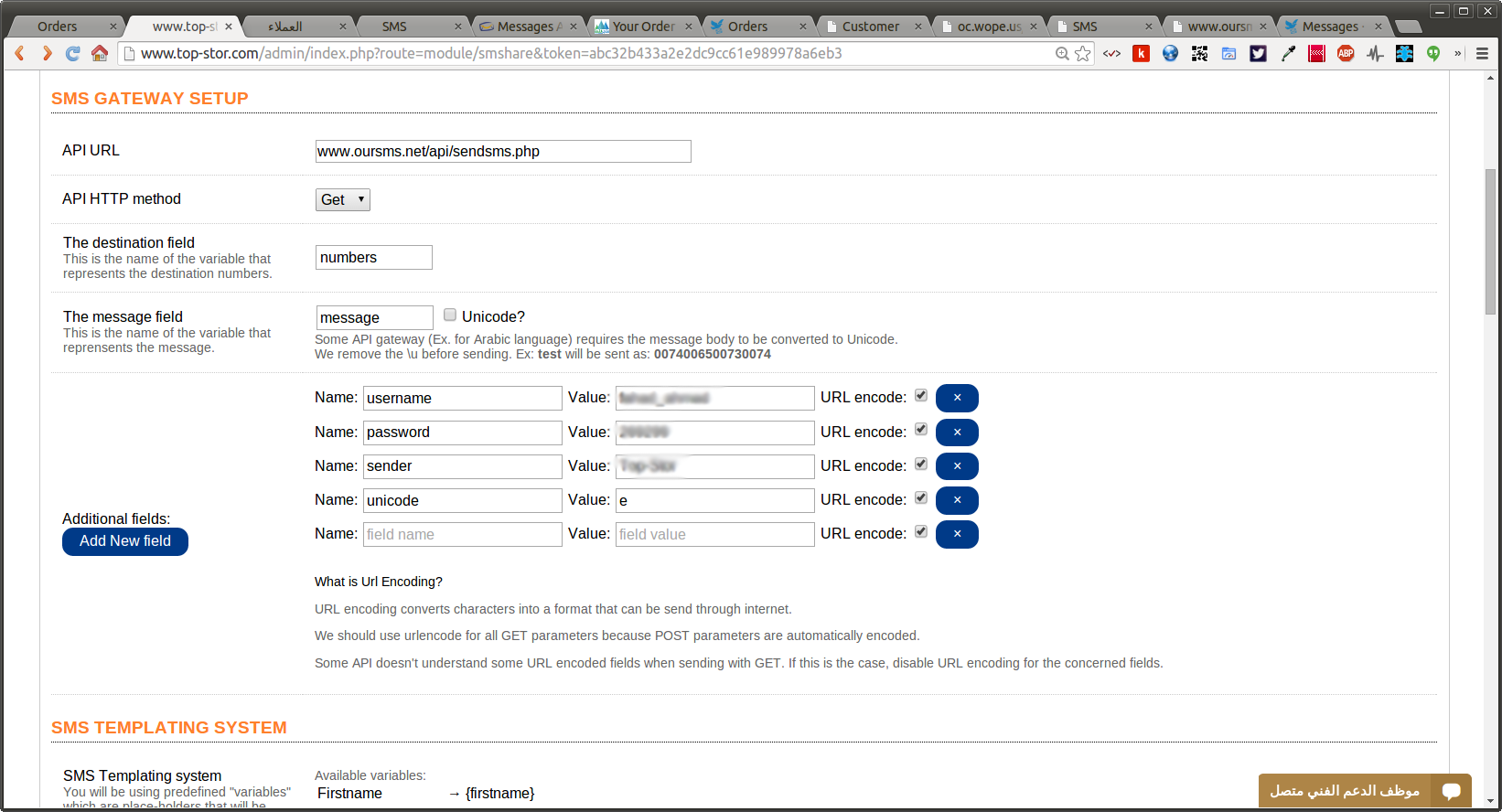

oursms.net

Gateway configuration example

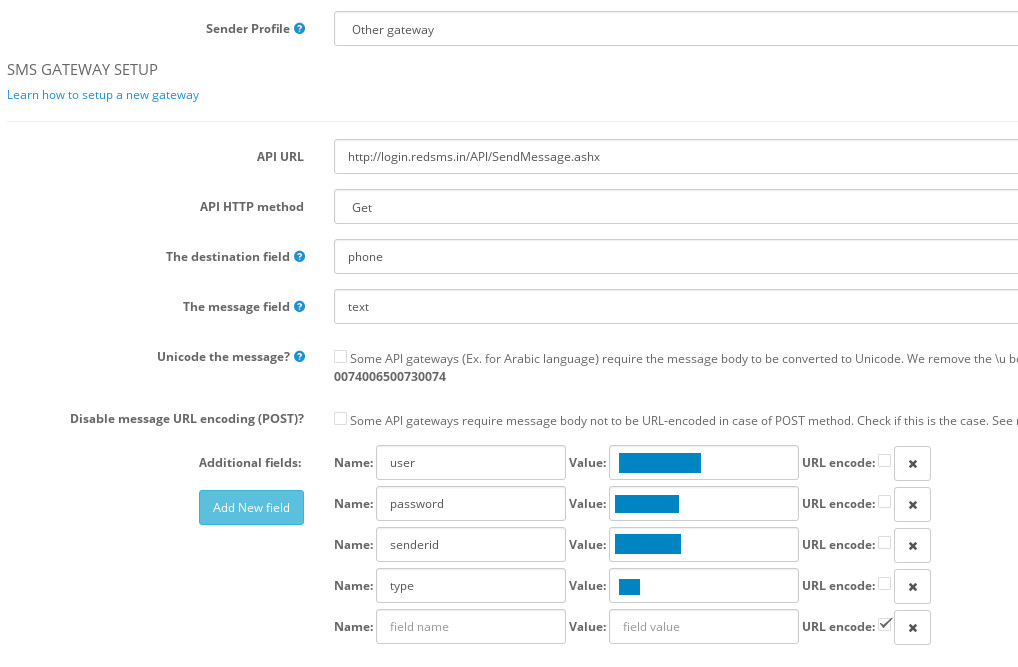

redsms.in

Gateway configuration example

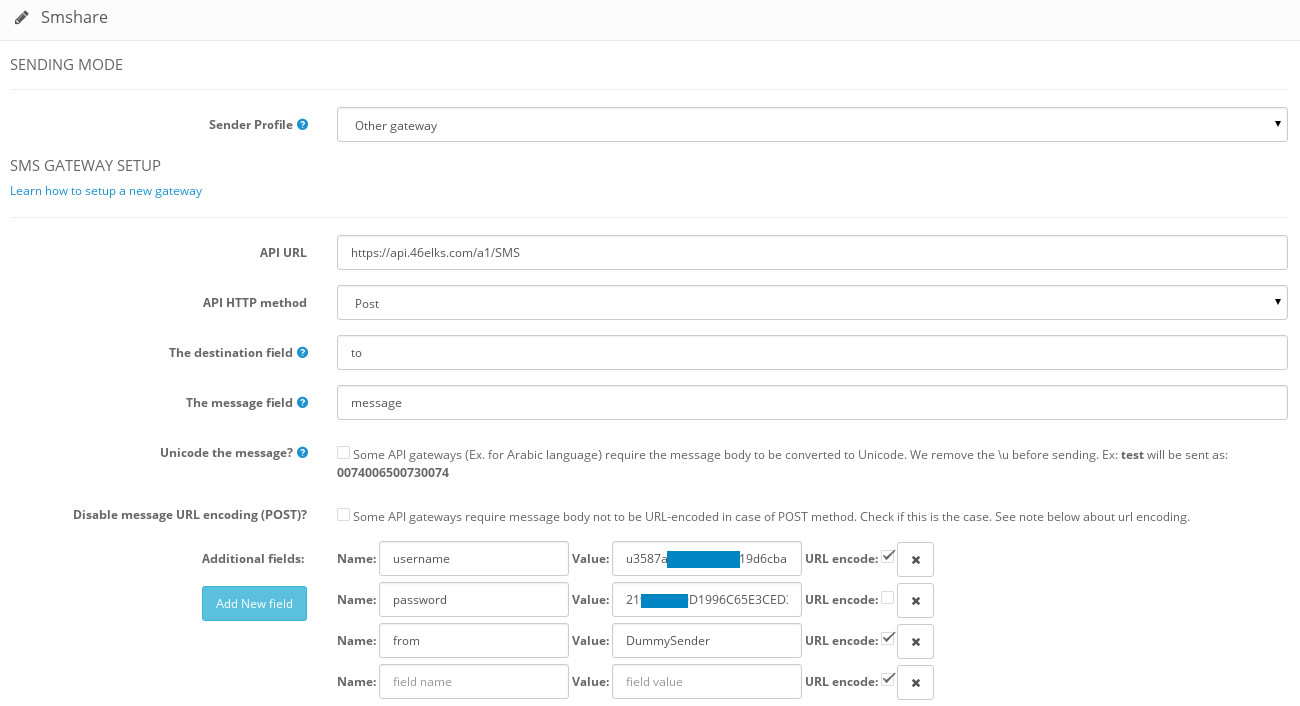

46elfks

Gateway configuration example

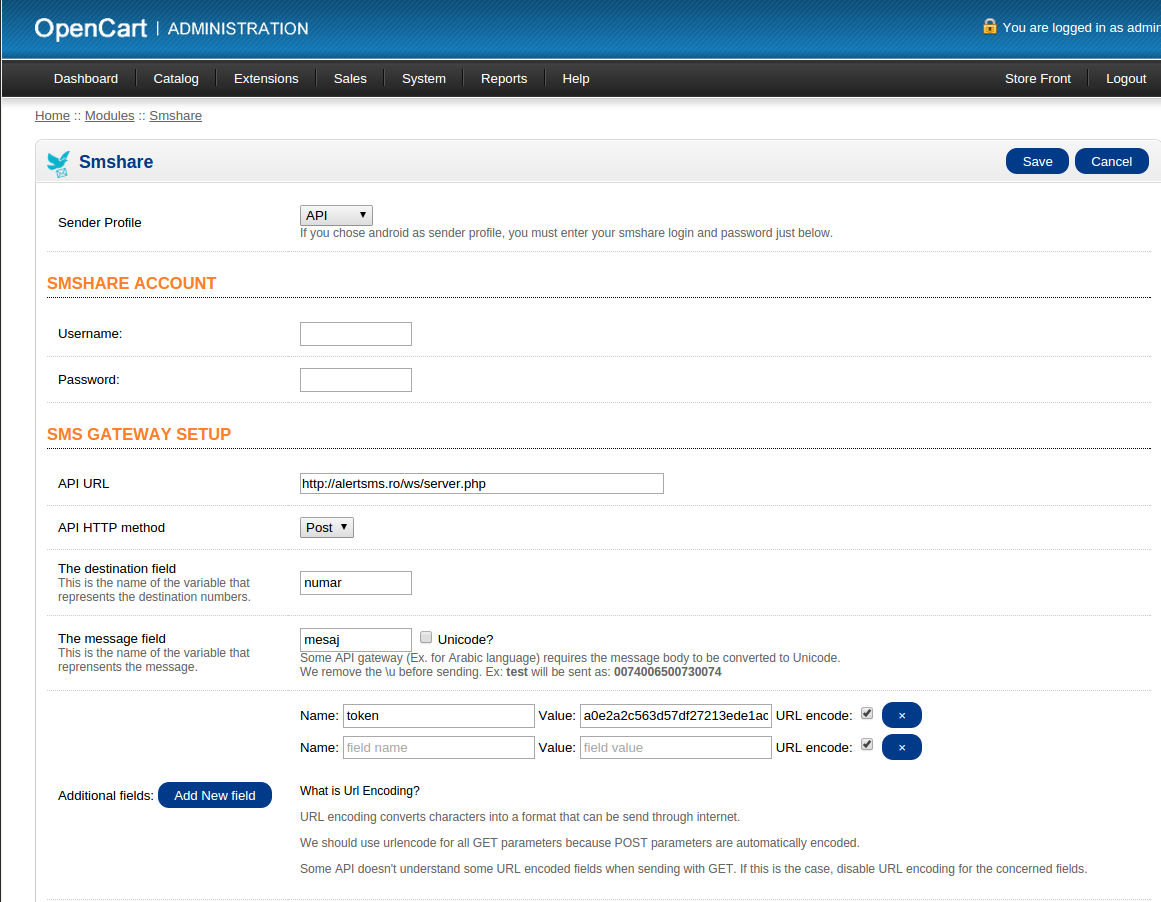

alertsms.ro

A Romanian gateway provider

Gateway configuration example

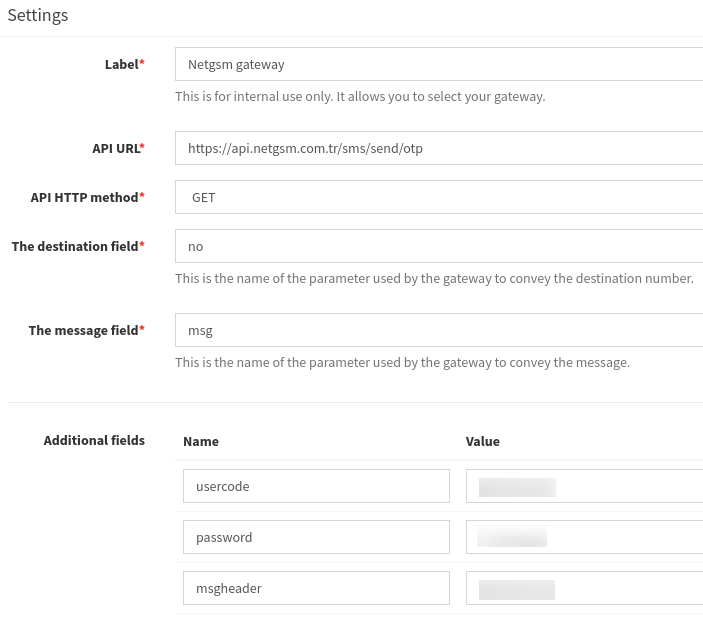

netgsm.com.tr

A turkish gateway provider

Gateway configuration example

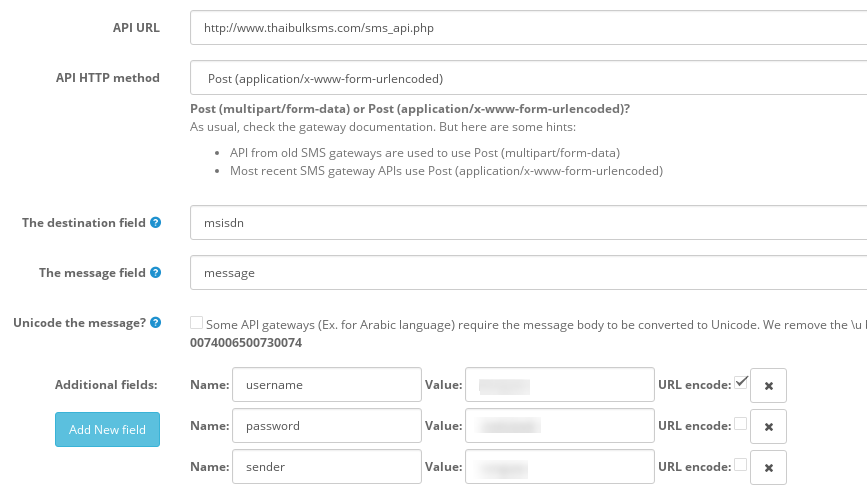

thaibulksms.com

A thai gateway provider

Gateway configuration example

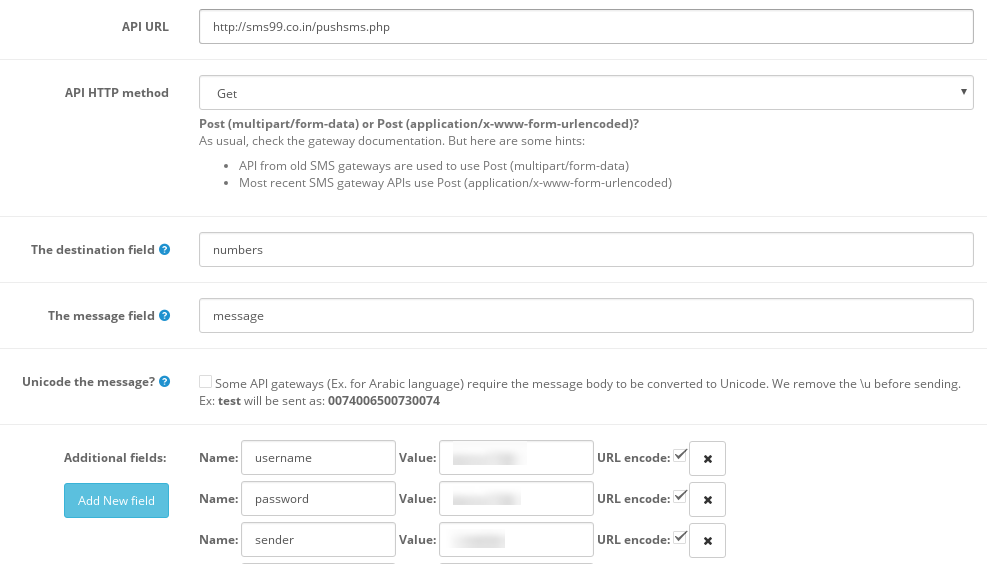

sms99.co.in

A thai gateway provider

Gateway configuration example

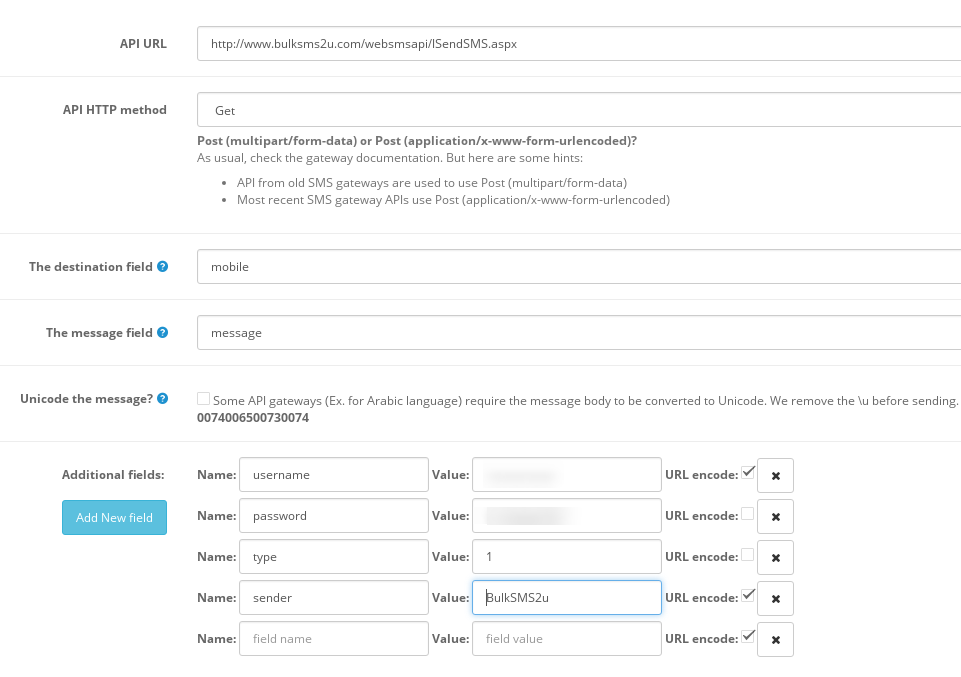

bulksms2u.com

A Malaysian gateway provider

Gateway configuration example

Documentation (PDF)

Conclusion

In this post we saw how to setup any gateway with the smshare module for opencart. If you have questions you can ask them in the comment section below or contact us.
